tonywhite

I have a second chip with stock firmware and it works great. The problem is most likely something unrelated to soldering.

YES

1.6 xgecu t48 Programmer (I do it as in the guides on YouTube for example Mad Mod Labs chanel)

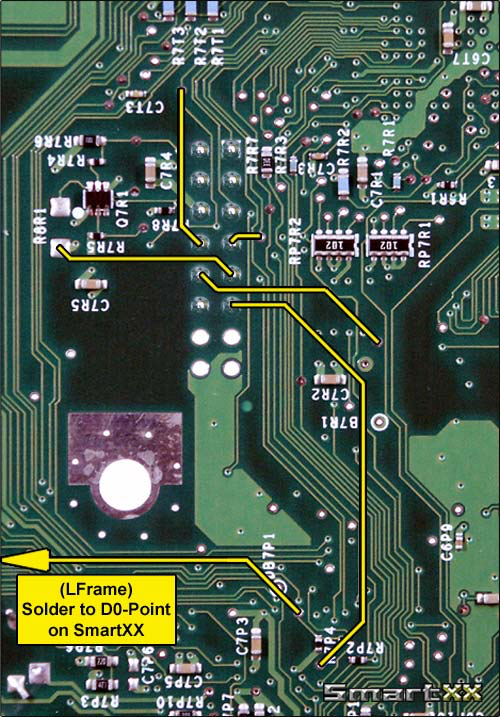

Hi all. Xbox 1.6 with aladdin xt plus2 installed. I want to flash the latest Cerbios. Flash SST 49LF020. I sew in the programmer, insert it into the chip, and as a result it tries to start and nothing. The chip wiring is standard, D0 wire too. What I'm doing wrong and what I'm doing right. Help me please. The installation diagram is below. Samsung memory chips. To be sure: 1. Didn’t copy anything to HDD 2. HDD standard 3. Cable component China and standard AV 4. The BIOS file that I’m trying to write is Cerbios Hybrid V2.3.1 BETA.bin

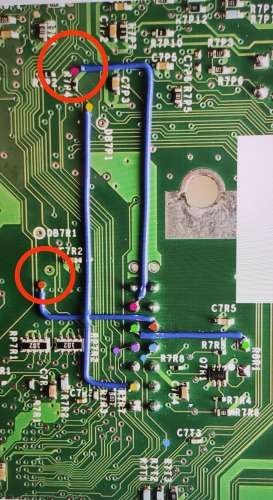

Good day everyone. I bought a not working xbox, previously there was a chip there. The solder points were destroyed by corrosion. Some things were restored, but unfortunately a couple of points were not restored. Are there alternative ways? I wanted to install aladdin xt plus2. I have circled the ones I need. Thx.
